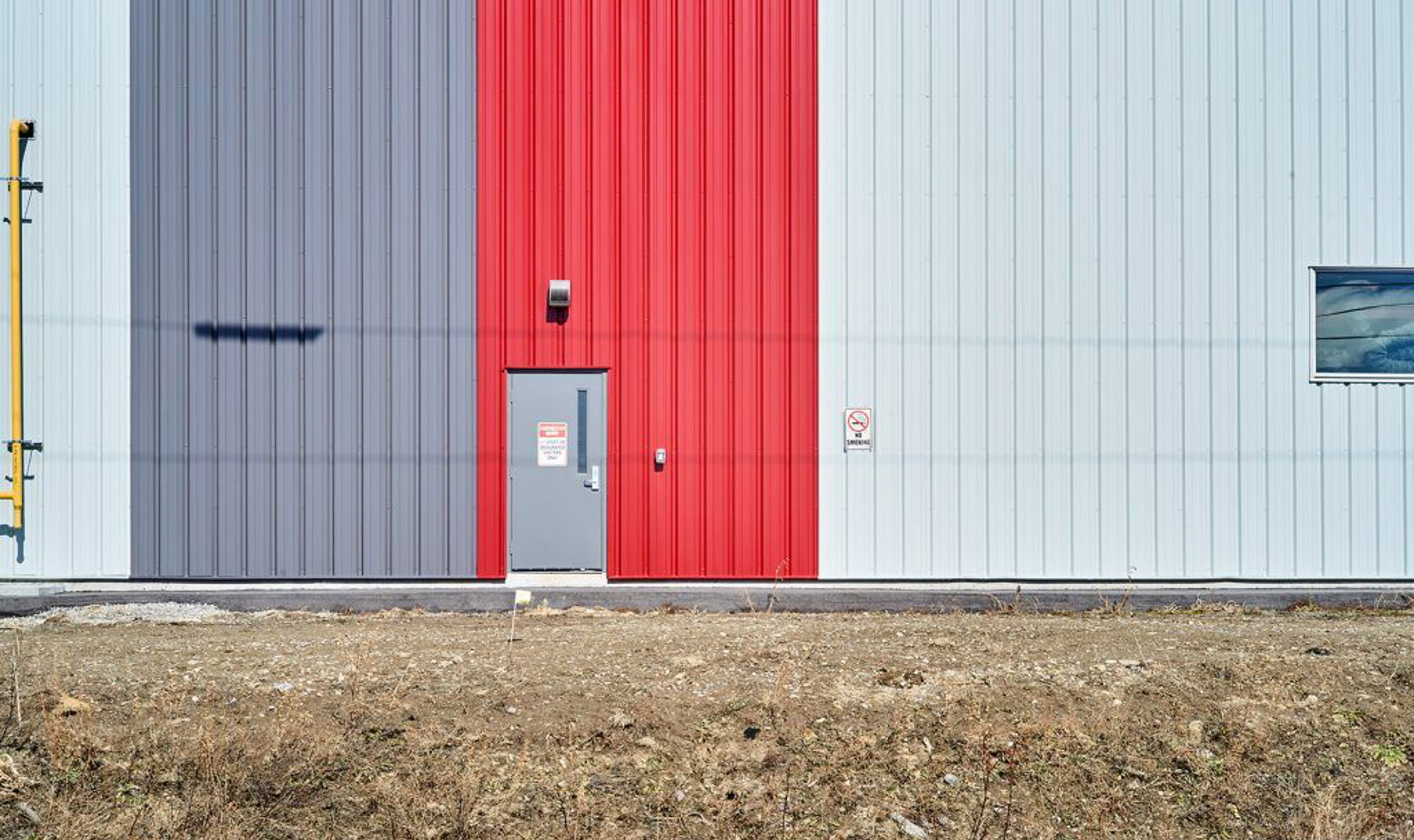

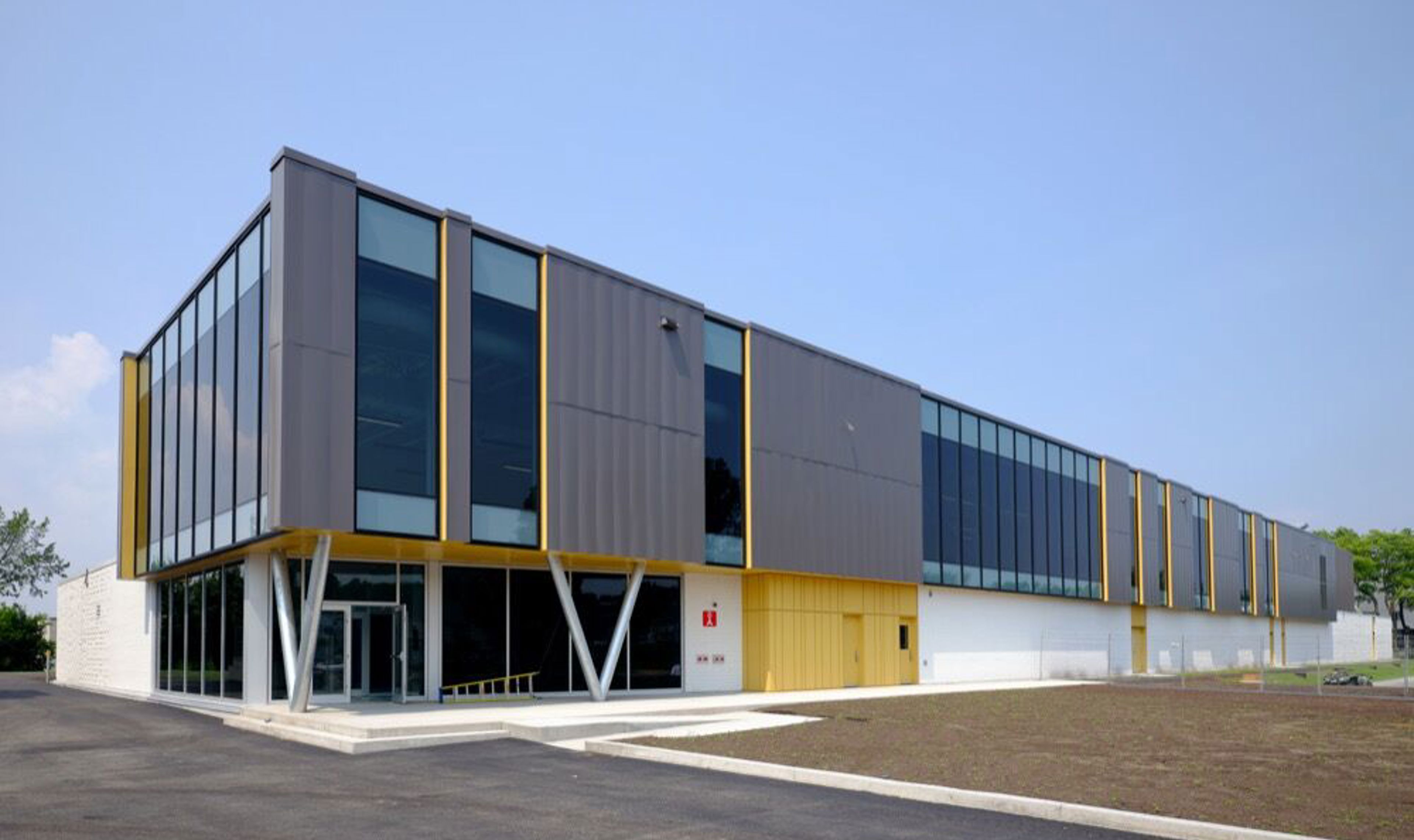

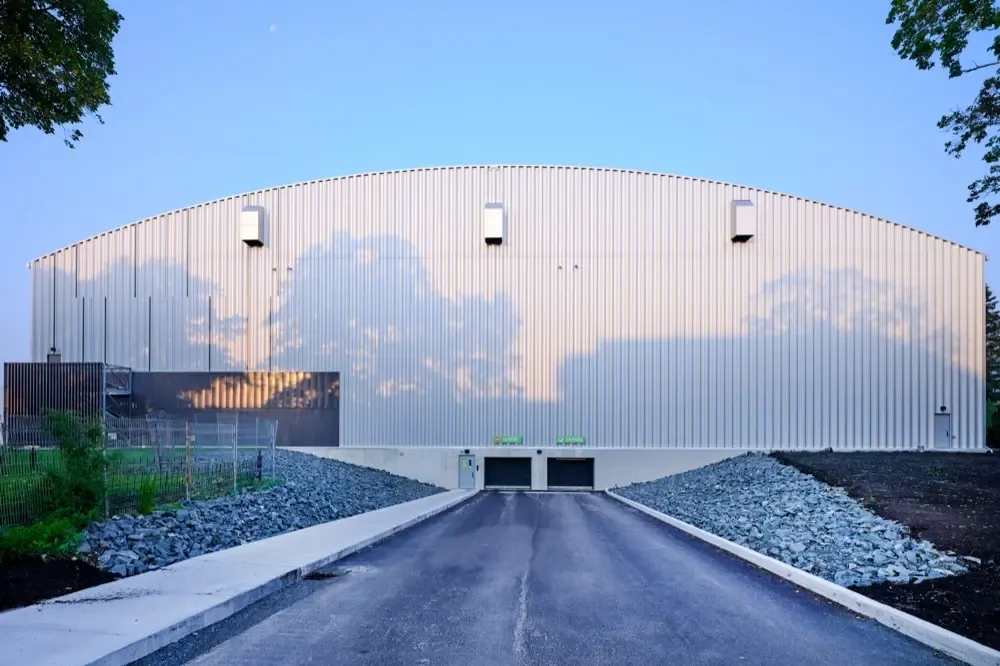

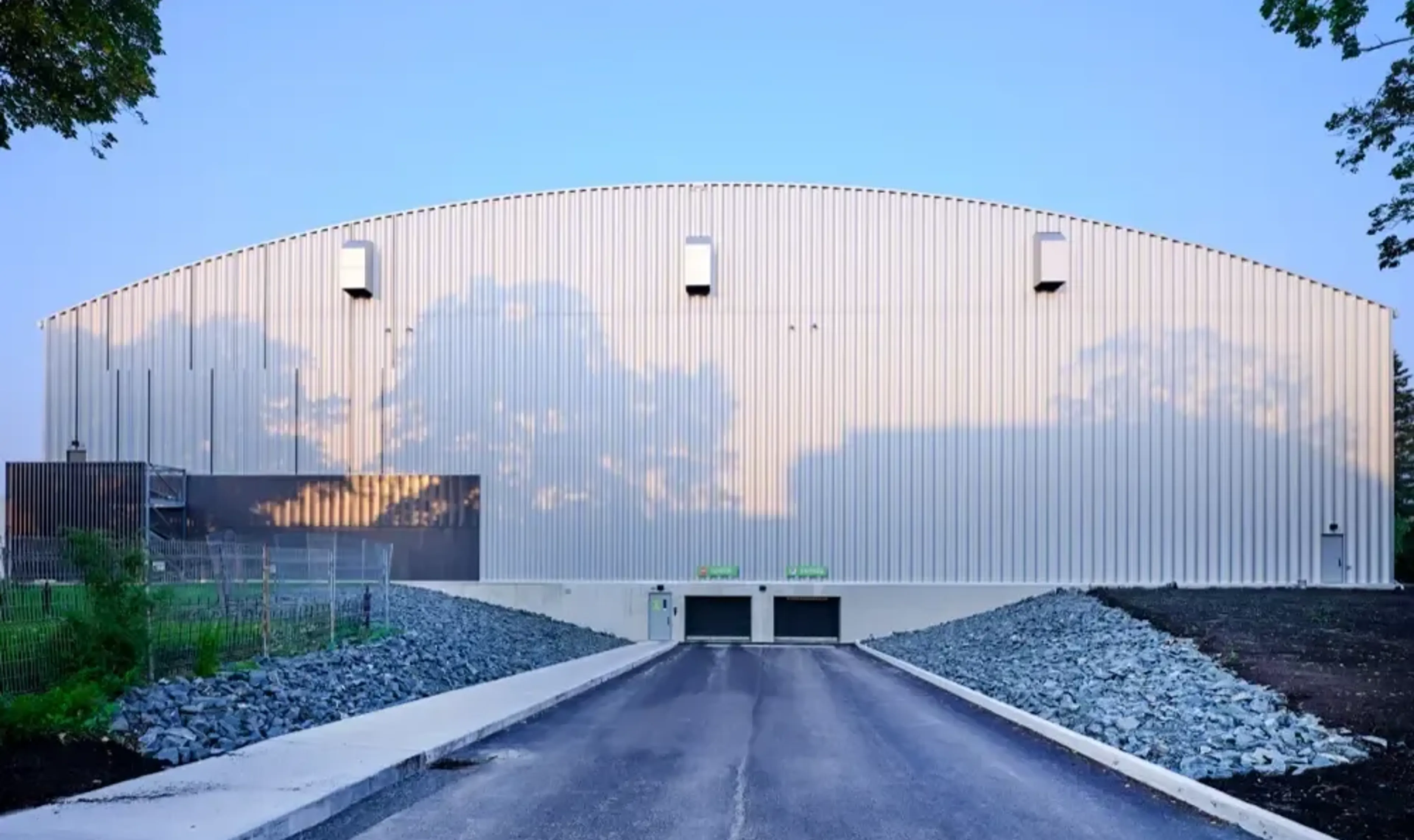

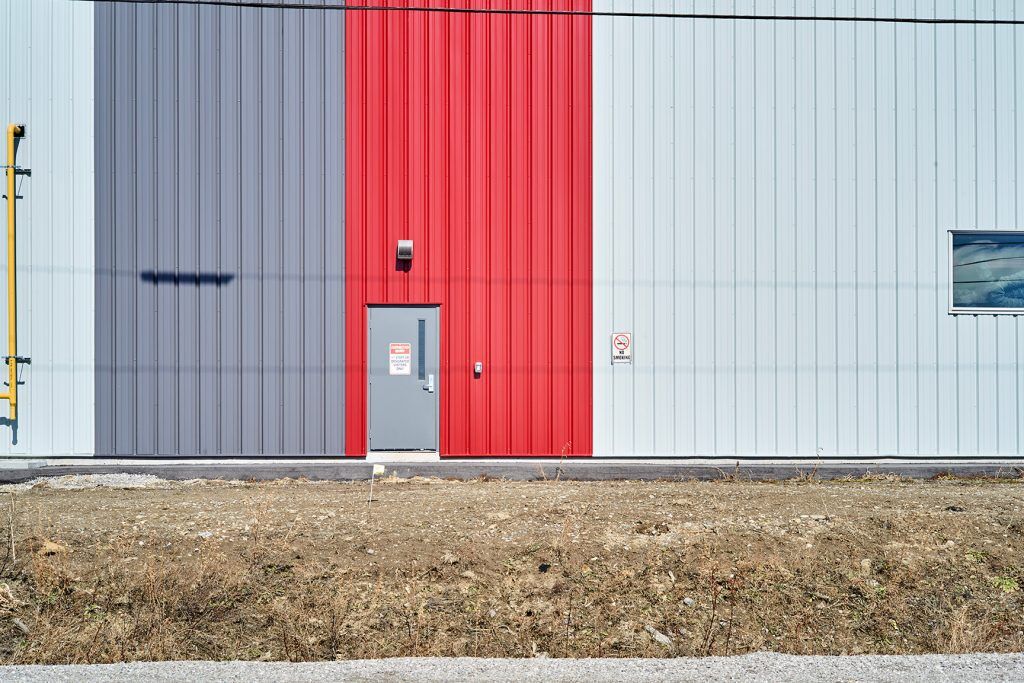

GalvalumeTM steel is used for industrial & commercial roofing, agricultural buildings, light steel framing, construction tubular, and pre-engineered buildings.

 GalvalumeTM

  • GalvalumeTM Steel is produced by the continuous hot dip coating process, in which the steel strip is fed through a bath of molten aluminum-zinc alloy. GalvalumeTM steel sheet combines the best qualities of aluminum and zinc offering superior corrosion resistance and heat reflectivity. The smooth, silvery metallic spangle appearance makes it attractive in unpainted applications. It is also available in pre-painted form in a number of different paint systems and can be readily post-painted in the field or at the fabricating plant.



Galvalume PlusTM

  • Galvalume PlusTM is a coated steel sheet that combines the excellent corrosion resistance of a GalvalumeTM  coating with a clear, organic surface treatment. The resin coating is applied over both sides of the GalvalumeTM sheet as a final protective layer. The result is an enhanced product with superior attributes for architects, product manufacturers, installers and building owners. Galvalume PlusTM can be roll formed dry with no lubricants and delivered to the jobsite dry with no oil on the surface. It resists fingerprinting during handling and installation, maintaining its "brand new" appearance longer.

  • GalvalumeTM Brochure English
  • GalvalumeTM Brochure French



 Qualities

  • Commercial Steel -- ASTM A792/A792M
  • Structural Steel -- ASTM A792/A792M
  • High Temperature Steel -- ASTM A792/A792M (Galvalume only)
  • Special Forming Steel
  • Helical Steel Culvert

Standard Coating Weights (both sides)

  • AZM150 150 g/m2 minimum triple spot
  • AZM165 165 g/m2 minimum triple spot
  • AZM180 180 g/m2 minimum triple spot
  • CSP Coating: AZ210 210 g/m2 minimum triple spot

Size Availability

  • Thickness: 0.012" to 0.090” (0.30mm to 2.25mm)
  • Width: 60” (1525mm) maximum






Warranties

Based on more than 40 years of exposure in the field, ArcelorMittal Dofasco warrants to the Buyer that Galvalume™ and Galvalume Plus™ steel sold for use as unpainted steel building products and exposed to normal atmospheric conditions, will not rupture, fail structurally, or perforate due to corrosion within a period of 40 years for AZM150, 45 years for AZM165 and 50 years for AZM180.

Links

GalvalumeTM and Galvalume PlusTM Domestic / International warranties

Pre-paint GalvalumeTM Warranty

The Warranty certificates are available for download, please contact an ArcelorMittal sales representative if you require additional information.

Note: Various steel grades and qualities may not be available across ArcelorMittal Dofasco's full gauge and width capability. Please contact the ArcelorMittal Dofasco Sales Department for further information on specific product availability.
